Polymer Concrete/ Fiberglass Handholes

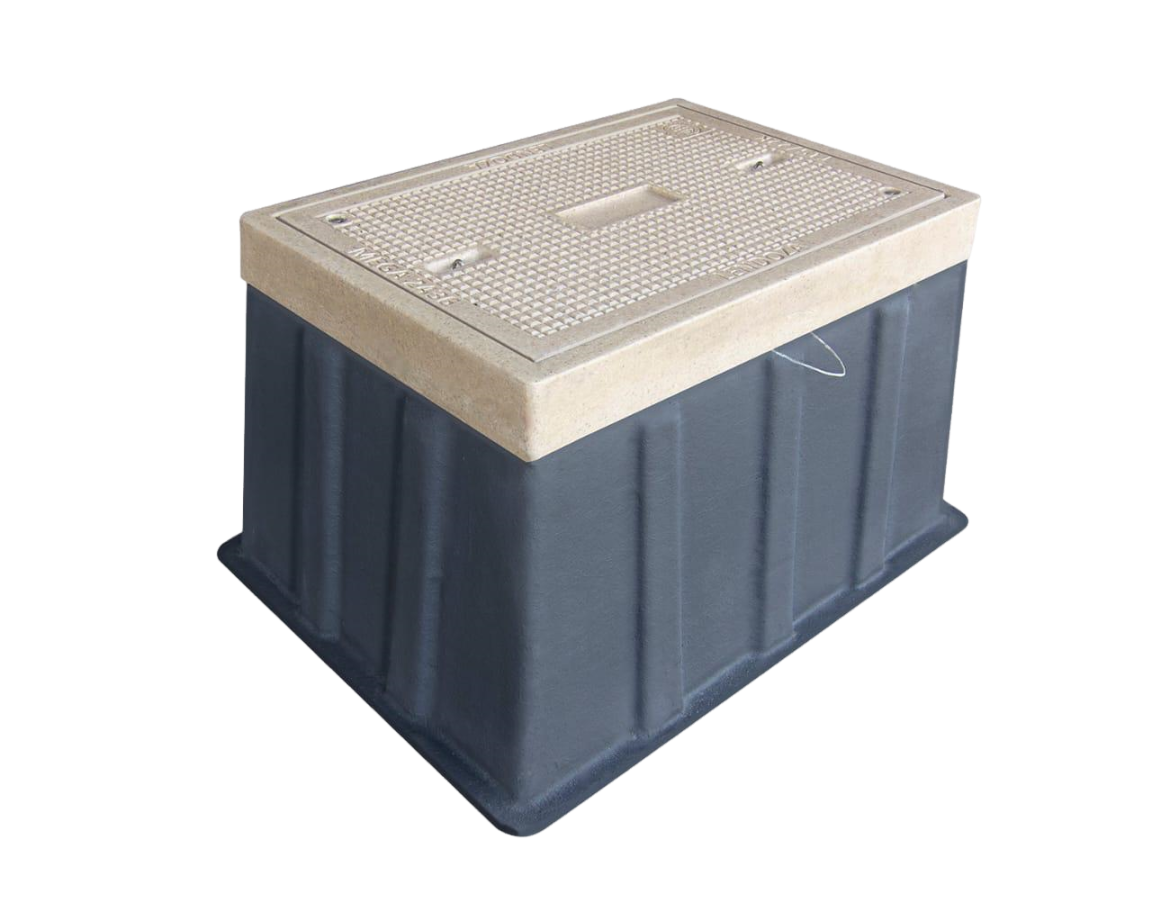

Underground Pull Box combination of Polymer concrete lid and ring with a Fiberglass base.
Designed for underground distribution systems, especially for fiber optic and electric power cabling requirements.
Contractor friendly; lighter than 100% polymer boxes and the flared design offers greater working area compared to straight walled units.
ANSI Tier-15 and Tier-22 complaint handholes
Very low water absorption
Natural polymer concrete finish.
Pull slot with stainless center pin, easy to handle lift cover
Custom design option for lid according to client’s logo
Description
| Product No. | DIMENSIONS | TIER RATING | UNIT WEIGHT (lbs.) | PCS BY PALLET | TL PALLETS BY TRUCK | TL LOAD QTY |
|---|---|---|---|---|---|---|
| NS121212T15 | 12" X 12" X12" | 15 | 77 | 14 | 36 | 504 |
| NS121212T22 | 12" X 12" X 12" | 22 | 85 | 14 | 34 | 476 |
| NS132418T15 | 13" X 24" X 18" | 15 | 88 | 14 | 34 | 476 |
| NS132418T22 | 13" X 24" X 18" | 22 | 93 | 14 | 32 | 448 |
| NS173018T15 | 17" X 30" X 18" | 15 | 174 | 10 | 22 | 220 |
| NS173018T22 | 17" X 30" X 18" | 22 | 178 | 10 | 22 | 220 |
| NS173024T15 | 17" X 30" X 24" | 15 | 178 | 10 | 22 | 220 |
| NS173024T22 | 17" X 30" X 24" | 22 | 180 | 10 | 22 | 220 |
| NS243618T15 | 24" X 36" X 18" | 15 | 187 | 7 | 33 | 231 |
| NS243618T22 | 24" X 36" X 18" | 22 | 192 | 7 | 32 | 224 |
| NS243624T15 | 24" X 36" X 24" | 15 | 196 | 7 | 32 | 224 |
| NS243624T22 | 24" X 36" X 24" | 22 | 200 | 7 | 31 | 217 |
| NS243630T15 | 24" X 36" X 30" | 15 | 205 | 7 | 30 | 210 |
| NS243630T22 | 24" X 36" X 30" | 22 | 209 | 7 | 30 | 210 |
| NS243636T15 | 24" X 36" X 36" | 15 | 214 | 6 | 34 | 204 |
| NS243624T22 | 24" X 36" X 36" | 22 | 218 | 6 | 33 | 198 |
| NS244836T15 | 24" X 48" X 36" | 15 | 436 | 5 | 18 | 90 |
| NS244836T22 | 24" X 48" X 36" | 22 | 442 | 5 | 16 | 80 |
| NS304824T15 | 30" X 48" X 24" | 15 | 509 | 5 | 16 | 80 |
| NS304824T22 | 30" X 48" X 24" | 22 | 514 | 5 | 16 | 80 |
| NS304830T15 | 30" X 48" X 30" | 15 | 518 | 5 | 16 | 80 |
| NS304830T22 | 30" X 48" X 30" | 22 | 522 | 5 | 16 | 80 |
| NS304836T15 | 30" X 48" X 36" | 15 | 527 | 5 | 16 | 80 |
| NS304836T22 | 30" X 48" X 36" | 22 | 531 | 5 | 16 | 80 |
| NS363036T15 | 36" X 30" X 36" | 15 | 518 | 5 | 16 | 80 |
| NS363036T22 | 36" X 30" X 36" | 22 | 522 | 5 | 16 | 80 |
| NS364830T15 | 36" X 48" X 30" | 15 | 522 | 4 | 18 | 72 |
| NS364836T22 | 36" X 48" X 36" | 22 | 562 | 4 | 18 | 72 |
| NS366036T15 | 36" X 60" X 36" | 15 | 794 | 3 | 12 | 36 |
| NS366036T22 | 36" X 60" X 36" | 22 | 798 | 3 | 12 | 36 |
| NS366048T15 | 36" X 60" X 48" | 15 | 802 | 3 | 12 | 36 |
| NS366048T22 | 36" X 60" X 48" | 22 | 807 | 3 | 12 | 36 |
| NS366060T15 | 36" X 60" X 60" | 15 | 904 | 2 | 12 | 24 |
| NS366060T22 | 36" X 60" X 60" | 22 | 915 | 2 | 12 | 24 |
| NS486048T15 | 48” X 60” X 48" | 15 | 926 | 1 | 10 | 10 |
| NS486048T22 | 48” X 60” X 48" | 22 | 937 | 1 | 10 | 10 |
